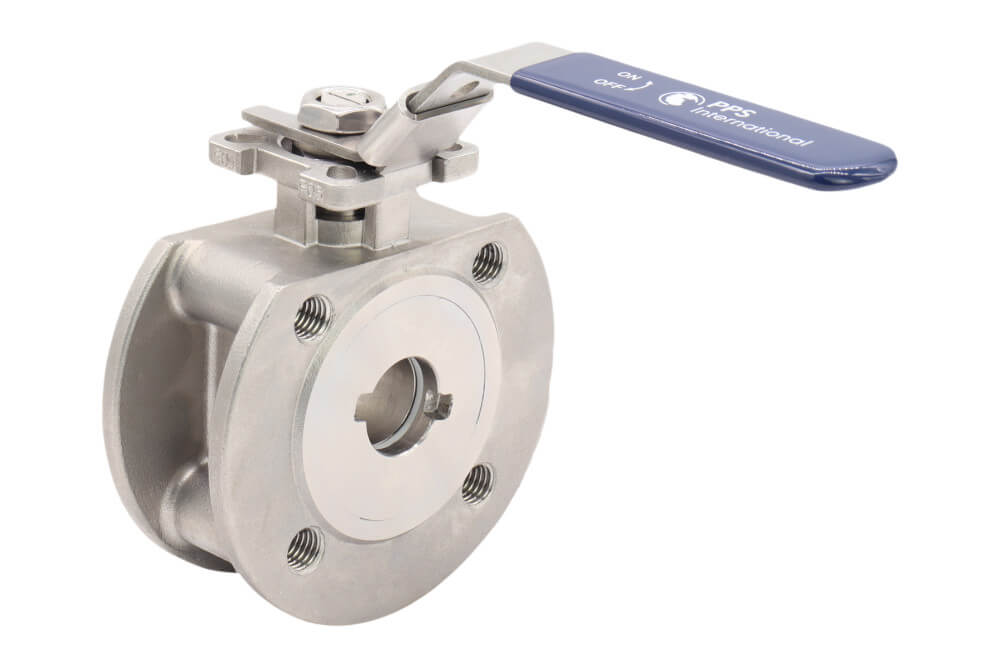

Corrosion-resistant stainless steel wafer ball valve, suitable for water, steam, air, oil, and light chemicals.

Material specifications

Body Stem Ball Seat O-Ring Sealing Gasket Gland Handle Locking device

1.4408 A276-316 A182-F316 R-PTFE Viton Graphite 316L 304 With PVC sleeve 304

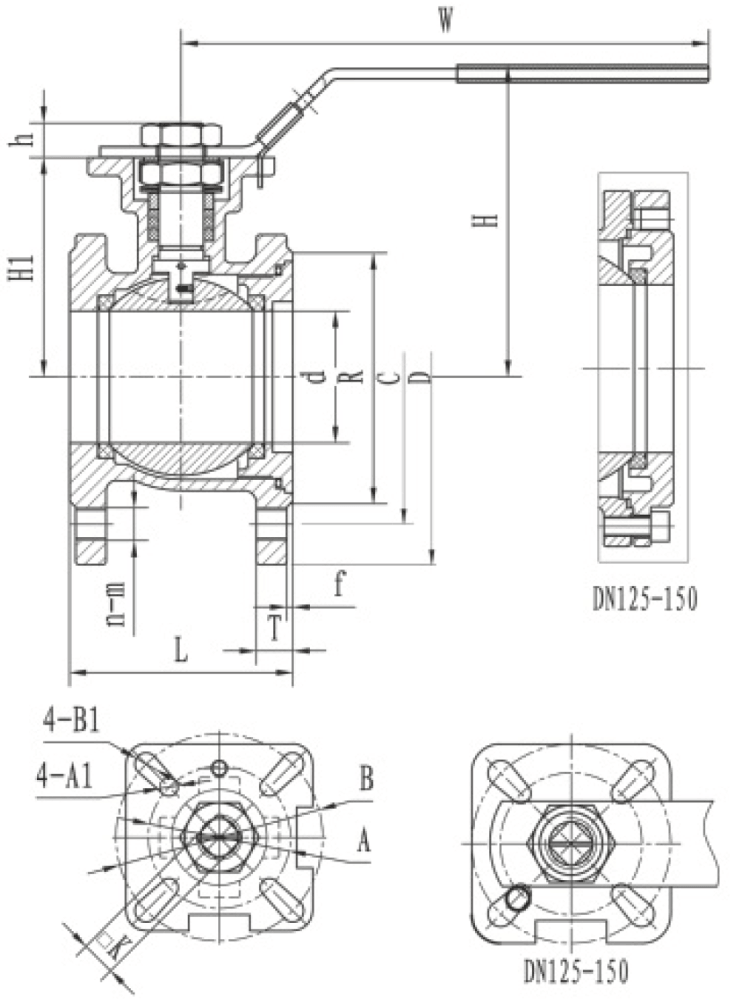

Dimensions

DN 15 20 25 32 40 50 65 80 100

Flange conn. PN40 PN40 PN40 PN40 PN40 PN40 PN16 PN16 PN16

D (mm) 15 20 25 32 38 50 65 76 94

OD (mm) 95 105 115 140 150 165 185 200 220

PCD (mm) 65 75 85 100 110 125 145 160 180

n x d (mm) 4xØ12 4xØ12 4xØ12 4xØ16 4xØ16 4xØ16 4xØ18 8xØ18 8xØ18

Torque (Nm) 7 9 13 19 27 40 60 85 150

Weight (kg) 1,1 1,4 1,8 3,0 4,3 5,9 9,0 12,5 19,4

Technical Features

Design Standard: Rating: Flange: ISO top: Pressure Test Standard: Shell Test: Seat Test: Seat Test (Gas): Temperature Range:

DIN 3375-2 DN15-50 PN40 / DN65-100 PN16 DIN Flanges acc. to EN 1092-1 ISO 5211 standard pad EN 12266 6.0 / 2.4 MPa 4.4 / 1.8 MPa 0.6 MPa -29°C to +160°C

Pressure & Temperature ranges

DN (mm) 15 20 25 32 40 50 65 80 100

Flange Connection PN40 PN40 PN40 PN40 PN40 PN40 PN16 PN16 PN16

Max. Pressure 40 bar 40 bar 40 bar 40 bar 40 bar 40 bar 16 bar 16 bar 16 bar

Temperature Range -29°C to +160°C -29°C to +160°C -29°C to +160°C -29°C to +160°C -29°C to +160°C -29°C to +160°C -29°C to +160°C -29°C to +160°C -29°C to +160°C
